How to configure Mikrotik RB1100AHx2

How to configure Mikrotik RB1100AHx2


I. Network Infrastructure

Description

In this session you will be able to:
- Configure IP address on interface
- Configure DHCP and apply to each interface (10 interface)
- Routes
- Create interface bridge
- Create NAT rule.
- Allow port camera (DVR Camera) can remote from outside.
Now, I have network infrastructure and I will configure it as my infrastructure. So, Please follow me step by step.
Infrastructure

II. Rename interface and add IP address to interface

+ Rename interface
- Ethernet13= WAN-eth13
- Ethernet1= LAN-ether1
1. Rename Interface

II. Create Port Bridge

What is port interface bridge? Interface Bridge is one method that we can combine two interface or more interface to be one interface and that interface we called interface bridge. However, interface that we had combine we called master interface or master port.
Example:
I take LAN-ether1 and ether6 to create interface bridge.
==> LAN-ether1 + ether6 = bridge1 (bridge1 is name of bridge)
How to do it:
4. Create port Bridge
+ Add LAN-ether1 into bridge1
5. Add Eth1 into Port Bridge1

+ Add ether6 into bridge1
6. Add Eth6 to Port bridge1
Result:
Resulf of create port Bridge1

III. Add IP Address to interface

- On WAN-eth13
2. Add IP to port WAN 2
- On LAN-ether1
3. Add IP to port LAN

IV. DHCP

Create DHCP server on port bridge (bridge1)
+ First method
7. DHCP
+ Second method
8. DHCP Second Option 9. DHCP Second Option 2

V. Apply all interface to get DHCP from Master port

*** Master port of ether2, 3, 4 and 5 is LAN-ether1
+ ether2
Port2
+ ether3
Port3

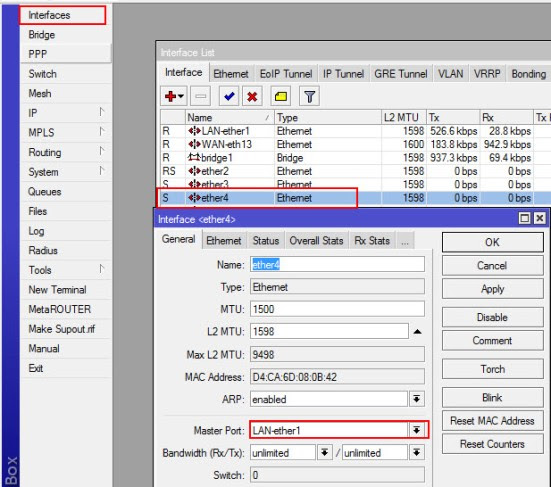

+ ether4
Port4
+ ether5
Port5
*** Master port of  ether7, 8, 9 and 10 is ether6
+ ether7
Port7
+ ether8
Port8
+ ether9
Port9
+ ether10
Port10

VI. Route and NAT

+ Route
- Default-Route
Default-Route
- Static Route
Static-Route2
+ NAT
1 2

VII. Open port for DVR Camera can remote from outside

+ Add port 9091
Port Camera Test Port Camera Test2
And for port 8080 and 37778 is do the same.
Note: You can add more port that you want.

Thank you for your attentions.
